How to Prevent and Remedy Crashes Caused by Flashing Incorrect XBL

In April 2022, my 8 Pro bricked in the same way, and I finally found out the reason!

Answer - Bootloader!#

OnePlus signs all four firmware with the same signature, OP8, OP8T, OP8Pro, and 9R all use the same signature, which means that regardless of which one you flash, their PBL (Primary Bootloader) will load the XBL (Secondary Bootloader).

While OxygenOS OTA is generally safe, it can still accidentally lead to OxygenOS flashing the wrong image or TWRP telling the payload to flash the DDR4 bootloader onto a DDR5 device. Previous OnePlus 8 and 8 Pro firmware came with a single bootloader designed for either DDR4 or DDR5. But starting from OxygenOS 12, they began shipping both DDR4 and DDR5 in the same package. The reason the phone bricks is that LPDDR5 uses a lower voltage compared to LPDDR4X, and simply because there is no code to prevent the XBL from setting the voltage too high on LPDDR5, the RAM fails to load the correct voltage and cannot function properly, causing the phone to fail to boot.

So if we manually flash OOS OTA via fastboot, we should check if it is the correct XBL to prevent this from happening.

Model	RAM
OnePlus 8	LPDDR4
OnePlus 8 Pro	LPDDR5
OnePlus 8T	LPDDR4x/LPDDR5
OnePlus 9R	LPDDR4x/LPDDR5

If you are OnePlus 8 (DDR4), you should flash xbl.img and xbl_config.img.
If you are OnePlus 8 Pro/8T/9R (DDR5), you should flash xbl_lp5.img and xbl_config_lp5.img.
I suggest that everyone making fastboot flashers include this change or create separate flashers for each code name!

Previously, LP5 was only available for the 9R firmware, but it seems some changes occurred after OnePlus joined OPPO, making many people feel it was dangerous.

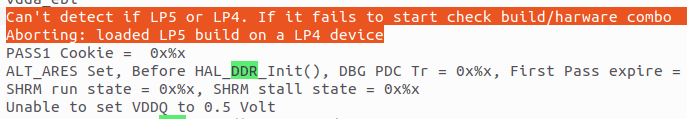

The images above have some checks, but they seem to not be functioning normally, and the voltage is set too high.

So, please stop flashing non-DDR5 bootloaders onto the 8 Pro firmware! Or at least add protection to prevent boot failures when DDR5 is detected.

How to Remedy#

Flashing the wrong XBL generally results in the phone behaving like an electronic brick (unable to power on, enter fastboot, 9008 mode, and no screen charging animation response when charging).

@Jpnx49Db0 explains

Let me explain why it bricks and needs a motherboard replacement. LPDDR4x and LPDDR5 have different voltages, and flashing the wrong xbl_config can lead to voltages being too high or too low, causing the RAM to malfunction and the phone to brick. The key detection code to enter 9008 mode is in the XBL, and when the phone bricks, it does not respond to key operations, so it cannot enter 9008. Those claiming to be able to enter 9008 to fix such bricked devices likely use a special engineering cable that connects specific resistors, allowing it to enter 9008 mode during the PBL stage (the first program executed after powering on) and directly ignore the XBL. Previously, after-sales service may not have known about the availability of engineering cables and would directly replace the motherboard when encountering such issues, but current after-sales should have engineering cables now, which can rescue the brick. For more details on what XBL and PBL are, you can check out my illustrated discussion on firmware security, which contains a lot of useful information [suffering meme].

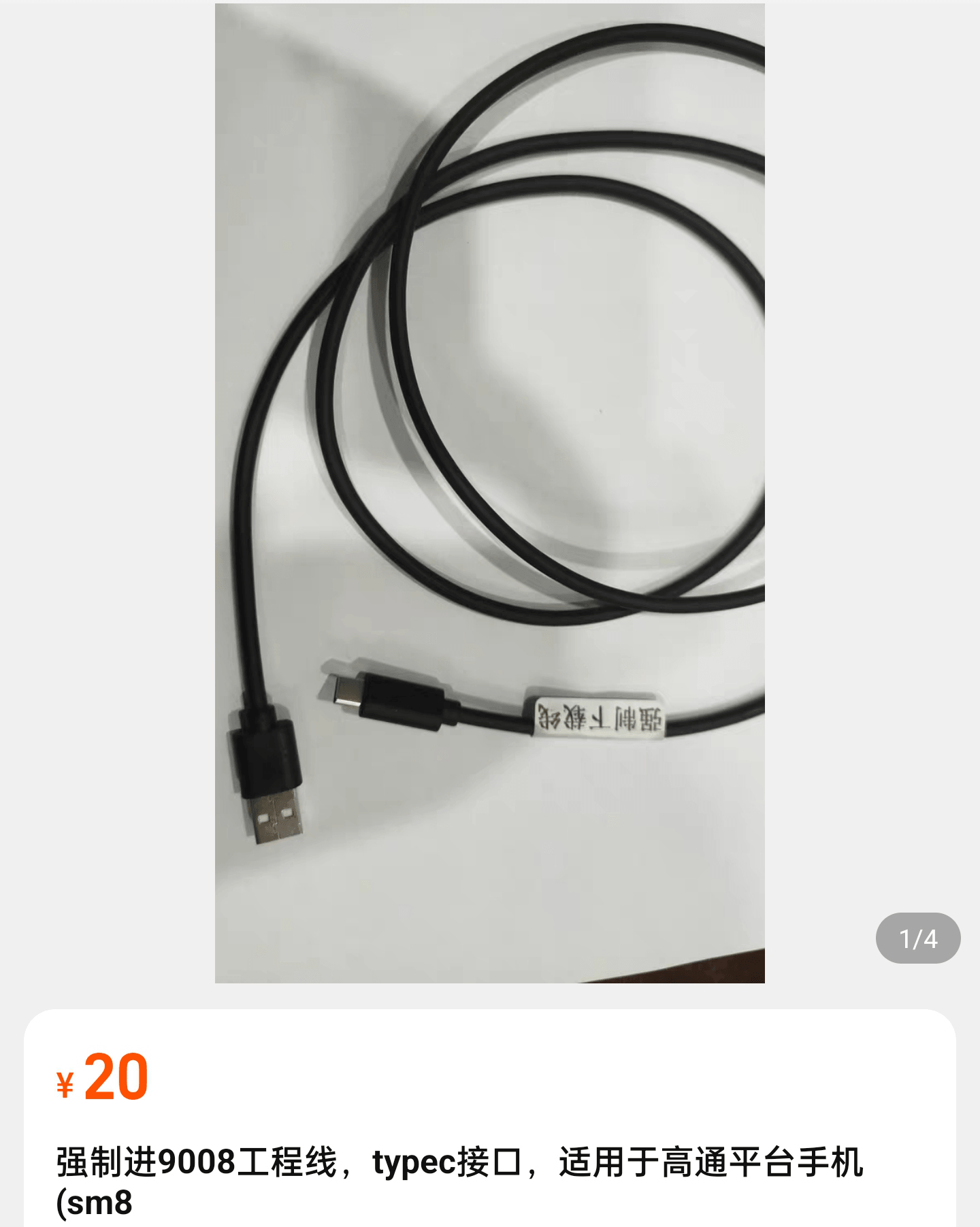

We can purchase an engineering cable with specific resistors to connect to your phone and use this cable for normal 9008 flashing operations to rescue your phone.

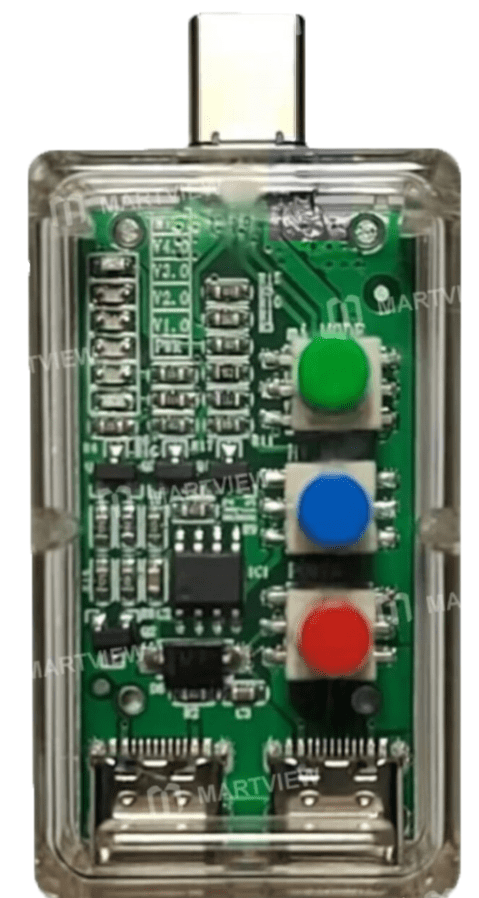

Of course, if your area does not sell cables explicitly with resistors, you can also use cables with similar PCB 2.0 functionality for flashing, which generally contain various types of resistors and typically look like this.

I hope this post can help others who encounter the same issue.
